Guide to Yellow Box Junction Law
for Motorists and Authorities

UK yellow box junction law is surprisingly complex, involving the dynamics of the movement, the physical box and enforcement and appeals legislation which differs in London, England and Wales. Altogether there are at least 10 different pieces of legislation. Most people are familiar with the highway code which states: "You MUST NOT enter the box until your exit road or lane is clear".  To kick off the confusion, you can see it doesn't actually say you can't "stop". The contravention code on tickets says something different: "Entering and stopping in a box junction when prohibited".  But what does "when prohibited" mean? Neither of these are actually the law. So how is someone supposed to know if they are guilty if the actual law is kept secret?



Most people are not aware that it's not actually an offence to stop on a box per-say, there are all manner of circumstances that need to be taken into account. Also boxes and tickets have been deemed to not comply with the law meaning thousands of tickets were issued wrongly. Most drivers do not know enough about the law to know if they are guilty or not. And some of those issuing tickets also do not understand the law. That's why I developed this site and the 27 Point PCN checklist

About The Yellow Box Guru

I am a chartered engineer with 25 years experience passionate about good design and fair enforcement. I spent around 10 years specialising in the design of yellow boxes at the country's largest enforcer. During ths time I designed and reviewed hundreds of boxesI have also studied adjudicator (who decide on appeals) decisions and I train others in the industry on how to design boxes correctly.  So complex is the law that almost every engineer I've met does not understand it. Even adjudicators disagree on it. If the professionals are confused how can ordinary motorists be expected to understand it?

The catalyst for me setting up this site was when I recently got a ticket for my back bumper overhanging the box below when I stopped at a red light. This is not an offence, and the ticket was issued wrongly. Either the authority issuing the ticket (Waltham Forest) didn't know the law, or they did but they were just trying it on to get some money out of me. Either way, it was a piss take.

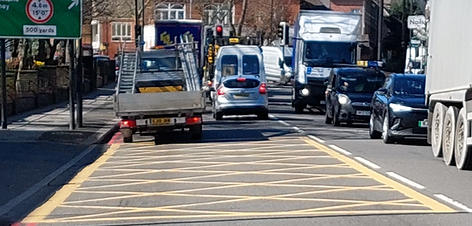

Yellow box.png

In London authorities have been able to enforce yellow boxes since 2004. In Cardiff since 2014. Drivers are fined £160 for stopping in them in LondonAlmost 400k tickets were issued at the top 100 boxes in London and Cardif in 2019. Recently law has been enacted to enable authorities outside London in England to apply to the Department for Transport for the powers to enforce them and 'civil enforcement' is being rolled out in many areas. Under the process of this civil or 'decriminalised' enforcement, if a motorist seeks help from a lawyer and wins their appeal, the legal fees cannot be claimed back as an expense. Sit down with a lawyer for an hour and you'd be lucky to get change out of £250, which is obviously more than the ticket cost, hence drivers are left in limbo. The purpose of this website is to set out the law in a simplified version to enable drivers to see if they are actually guilty and have grounds for appeal and to educate authorities to ensure tickets are issued correctly in the first place. Fining people is a serious business which can really affect peoples lives particularly in a cost of living crisis. Fair justice is a basic right for all.

If my advice has helped you please feel free to buy me a coffee!

Is Yellow Box Enforcement 'Fair'?

When most people think of yellow box enforcement, they envisage junctions being deliberately blocked by selfish drivers. And most people including myself, have little sympathy for such drivers who get a ticket. However lots of drivers get stuck in boxes through no fault of their own. In addition, poor box design means they are often not causing an obstruction. Below I list 5 key areas in which enforcement can be unfair:



1. Box size

Any part of a box not protecting a cross movement serves no purpose. From my research, the majority of boxes are bigger than they need to be. For example in the images below the boxes should have been painted along the blue lines. The vehicles circled were fined but not causing an obstruction. These fines serve no traffic purpose.

box too big .png
hoe st yellow box.png

2. Left turners

Despite the fact they cause no obstruction to cross movements, we see (for example in the video below) enforcement targeting left turners who are just trying to exit side roads. A movement you might think the box was designed to actually help! Yellow boxes were never invented to stop people turning left. I have never designed one for this purpose, I don't know any other engineer who has and there is no Department for Transport guidance advising that boxes should be used for this purpose. There is no traffic reason for enforcing them. IMO at best it's a misuse of the enforcement powers, at worst an abuse of power. Interesting to note that in Singapore turning movements not causing an obstruction are permitted to stop on yellow boxes but unfortunately not in the UK.

Yellow box left turn

3. Visibility

Unlike other restrictions like banned turns, drivers must rely exclusively on seeing the marking on the road from the acute angle of the driver's seat. They must see exactly where it ends in order to comply with the highway code requirement to only enter if their exit is clear. It might be faded, obstructed by other vehicles or the road layout etc. The drivers view is very different to the camera view, as shown below - the first 2 images are both of the same box. The camera operator doesn't see the driver's view. It's even harder at night, in rain or with poorly maintained lines as shown in the last 2 photos.

Whalebone Lane yellow box
Whalebone Lane yellow box

4. Judging length from an acute angle

Even if they can see the end of the box, the driver needs to judge if the space on the exit is big enough to fit their vehicle.  In the first example below, it's a small box and close distance, yet still it would be easy to misjudge and overhang the box by a few inches. Now imagine a longer distance such as the second photo. Is the space on the right adequate? If you stopped in the middle of these boxes then clearly that's wrong and few people would shed a tear if you got a ticket. But a genuine attempt to clear the box and misjudging by a small amount is very different. Is it fair to expect people to be able to accurately judge length from an acute angle? Is it within the cognitive ability of humans? I would like to see some controlled trials and research on this issue.

West hill fire station yellow box

5. Over zealous

The law is that any part of the vehicle in the box for any length of time is eligible for a ticket. So your back bumper overhanging a box for 1 second can land you a £160 fine. There are many examples of enforcement targeting extremely minor stops not causing any obstruction, for example in the video below. Many people condier this to be unfair and 'over zealous'.
